RTD and Thermocouple Assemblies
Are one of the most widely used field instruments for the measurement of temperature in process industries. In this category, we are featuring RTD and thermocouple assemblies with various constructional and design varieties as follows:
- Series 1XX – In his category, you can find inserts that can be used for retrofit applications, or applications such as bearing temperature, skin temperature, or for use inside an existing thermowell.
- Series 3XX, 4XX, 5XX – RTD thermocouple with Drilled bar stock thermowell. In this category, we feature the most popularly installed assemblies in a majority of process plants. The thermowell can either be threaded, flanged, or with the weld-in process connection. These are supplied by us in a variety of materials starting from alloy steels, Stainless Steels, to exotic grades in Nickel alloys, Cobalt alloys, and sintered or recrystallized grades. All thermowells are designed for mechanical strength as per ASME PTC 19.3 code to the latest edition.
- Series 6XX – RTD Thermocouples assemblies with built-up thermowell. In this category, we offer assemblies with thermowell built from a seamless or seam welded pipe or from a closed-end tube, for a variety of applications involving longer length, and those involving special metallurgy often in vessel applications, as well as for critical process conditions. One such example is the use of recrystallized alumina for use in high-temperature furnaces or combustion chamber applications.
 |
100 Series |
Thermocouple & RTD insert onlyRTD inserts only – with various cold end termination options to choose from, and a variety of sheath diameters and materials of constructions to choose from. |
Download PDF⇓ |
 |
110 Series |
Thermocouple & RTD with head and extensionRTD with terminal head, and various head extension options to choose from, including ex-proof ATEX and IECEx certified configurations |
Download PDF⇓ |
| 120 Series |
Thermocouple & RTD with head and connectorRTD with terminal head, and adjustable connector for connection to well, for use in retrofit applications |
Download PDF | |
 |
121 Series |
Thermocouple with a circular collarThermocouple with terminal head and circular collar mounted hot junction, for surface temperature measurement on vessels |
Download PDF |
|
|
122
Series |
Thermocouple & RTD with weld padRTD with terminal head, with weld pad for easy installation on surfaces for temperature measurement of tubes or surfaces |
Download PDF |
|
|
123
Series |
Thermocouple & RTD with strapsRTD with terminal head, with strap connections for mounting on process lines or small circular surfaces for high-temperature thermocouple measurement. |
Download PDF |
|
|
130
Series |
Thermocouple with connectorThick wall thermocouples for use in high-temperature thermocouple applications such as furnaces |
Download PDF |
Thermocouple or RTD Assemblies with terminal head, extension Nipple Union Nipple and drilled barstock threaded thermowell
 |
300 Series | The threaded hex taper thermowell ( with insulation lagging extension ) | Download PDF⇓ |
 |
310 Series | The threaded round taper thermowell | Download PDF⇓ |
 |
320 Series | The threaded stepped thermowell | Download PDF⇓ |
 |
330 Series | The threaded taper thermowell with longer | Download PDF⇓ |
|
340 Series | The Solid Sintered Tungsten Carbide thermowell | Download PDF⇓ |
 |
400 Series | The flanged taper thermowell | Download PDF⇓ |
 |
410 Series | The flanged screwed and seal welded taper thermowell | Download PDF⇓ |
 |
420 Series | The flanged stepped thermowell | Download PDF⇓ |
 |
430 Series | The exotic sleeved flanged thermowell | Download PDF⇓ |
 |
440 Series | The Solid Sintered Tungsten Carbide thermowell | Download PDF⇓ |
 |
450 Series | The exotic sleeved flanged thermowell | |
 |

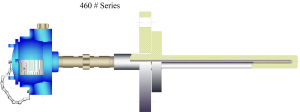

460 Series | The Van Stone thermowell | Download PDF⇓ |
 |

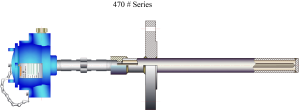

470 Series | Thermocouple and RTD with pipe + barstock fabricated thermowell | Download PDF⇓ |
Thermocouple or RTD Assemblies with terminal head, extension Nipple Union Nipple and drilled barstock weld-in thermowell
 |
500 Series | RTD with DIN ( type D) thermowell | Download PDF⇓ |
 |

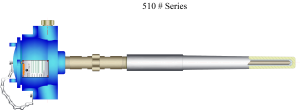

510 Series | Thermocouple with taper thermowell | Download PDF⇓ |
 |

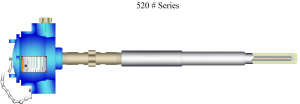

520 Series | RTD with stepped thermowell | Download PDF⇓ |
 |

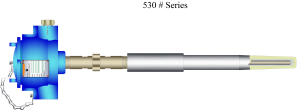

530 Series | Thermocouple with straight + taper thermowell | Download PDF⇓ |
 |

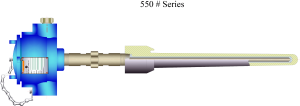

550 Series | RTD with high-pressure boiler thermowell | Download PDF⇓ |
 |

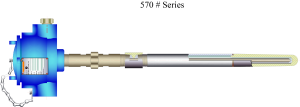

570 Series | Thermocouples with pipe + bar stock fabricated thermowell |
 |
600 Series | Thermocouple and RTD with threaded connection | Download PDF⇓ |
 |
610 Series | Thermocouple and RTD with flanged connection | Download PDF⇓ |
High temperature Thermocouple assemblies with ‘protecting tube’ in high temperature ceramic or recrystallized gradee
- 611 Series – High temperature thermocouple with single protecting tube and flanged connection
- 612 Series – High temperature thermocouple with double protecting tube and flanged connection
